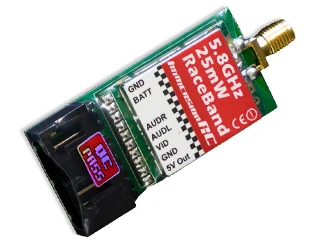

Race Band 25mW 5.8GHz A/V Transmitter

Race Band 25mW 5.8GHz A/V Tramsmitter

Overview:
This ImmersionRC Audio/Video Transmitter provides a clean and powerful A/V transmission signal which is 100% compatible with all Fat Shark and Immersion RC products. Strong penetration and a locked in signal gives you the best picture on 5.8GHz all in a lightweight, efficient, 25mW 5.8GHz transmitter package.

Features:
• The ideal transmitter for FPV Race Events (as used at the US Nationals, 2015)
• 37MHZ frequency seperation allows for flying up to 8 pilots simultaneously
• SMA female antenna connector
• 25mW (+/- 1dB) of clean output power
• Frequencies: 5740, 5760, 5780, 5800, 5820, 5840, 5860 MHz (ImmersionRC/FatShark)
• All standard channels within the US/EU ISM Band
• Frequencies: 5658, 5695, 5732, 5769, 5806, 5843, 5880, 5917MHz (RaceBand)
• All Raceband channels legal using a Ham license within the USA
• Raceband Channels 1-6 legal using a Ham license within the EU
• Onboard quiet switching regulator, powers 5V cameras
• Input voltage range: 6 – 25V (2S-6S)
• Not affected by 2.4GHz R/C radios!

Includes:
– 1 × 2.15dBi 5.8GHz omni-directional antenna (SMA male connector)
– 1 × Video cable (20cm 5-pin Molex-SL terminated in wire ends)
– 1 × DC power cable (24cm 2-pin Molex-SL terminated in BEC-style connector)
