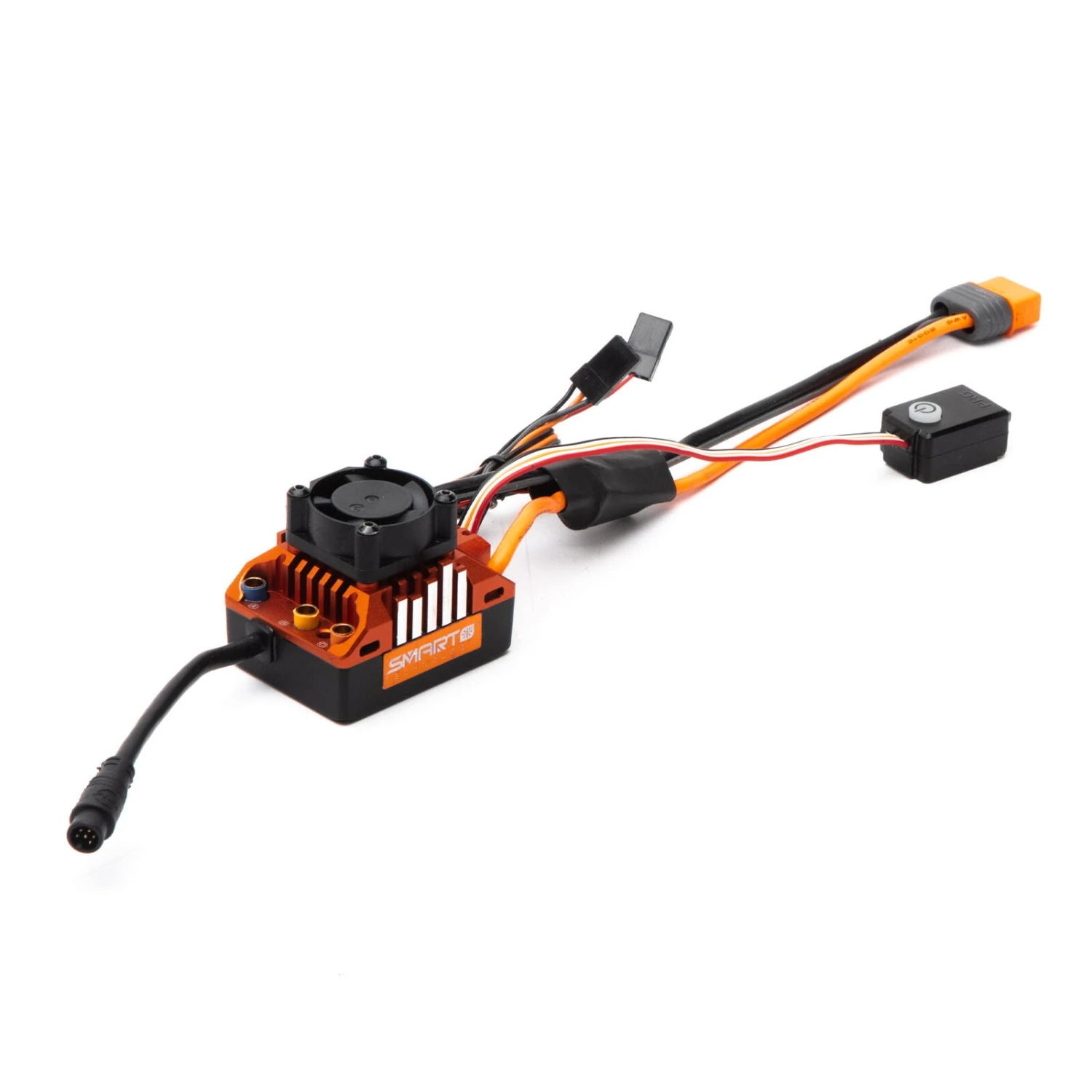

Spektrum Firma Crawler 120A Sensored BL Smart ESC

FIRMA Crawler 120A Sensored BL Smart ESC

Overview:
The Spektrum Firma Sensored Smart ESC System is specifically engineered to be used with 6th scale Crawlers and Scalers, such as the Axial® SCX6™. Featuring advanced Smart connectivity, professional drag brake performance and torque control, all while being fully waterproof.

Like every component in the Spektrum™ Smart ecosystem, Firma™ Smart ESCs combine “plug-and-play” simplicity with the ability to communicate with other Smart electronics — together, creating the best-performing RC system for your vehicle imaginable.

Firma Smart ESCs do much more than regulate power. They function like a virtual engineer inside your model, providing a direct path to the vital operating data you need to reach peak performance. Firma Smart ESCs give you an extra layer of confidence that your electronics are all operating at their best.

With Firma Smart ESCs, you’ll be better connected to your vehicle than ever before — without installing extra components that all work independently of each other. You won’t need extra wires, modules, or links. A Firma electronic speed control provides a one-wire solution for obtaining telemetry data such as RPM, temperature, battery voltage and capacity.

Firma ESCs not only gather the data, but also send it to your transmitter in real time, instead of only storing it for after-run study. You’re able to adjust settings as needed to boost performance on the go. The Firma Smart single-wire telemetry solution has been tested for quality and performance by the best brands in RC. Their verdict? Smart technology is both simpler and superior!

Features:

• Smart all-in-one telemetry
• Pro-level drag brake performance and adjustability
• RPM/Throttle matching enabled
• FOC (Field-Oriented Control) equipped
• 120 Amp power for giant scale crawlers and extremely heavy crawlers
• 2S-4S LiPo compatible
• Fast, powerful 32-bit ARM M4 processor
• Waterproof ESC

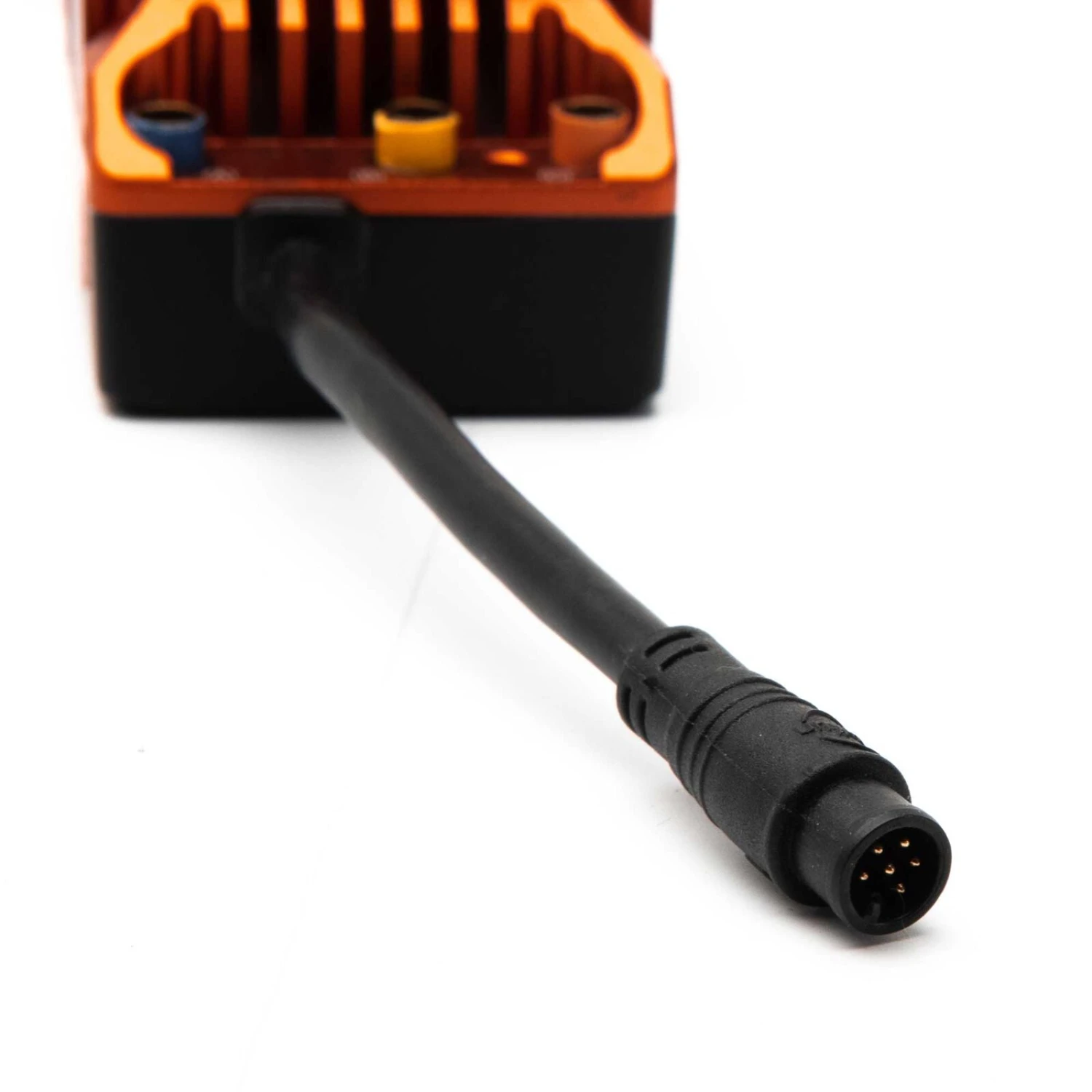

• Waterproof sensor wire with locking plug and gasket
• Developed and designed by Spektrum™ engineers, in partnership with the industry’s leading ESC manufacturer
• Compact for easy installation in most applications
• Ready to install — no soldering required

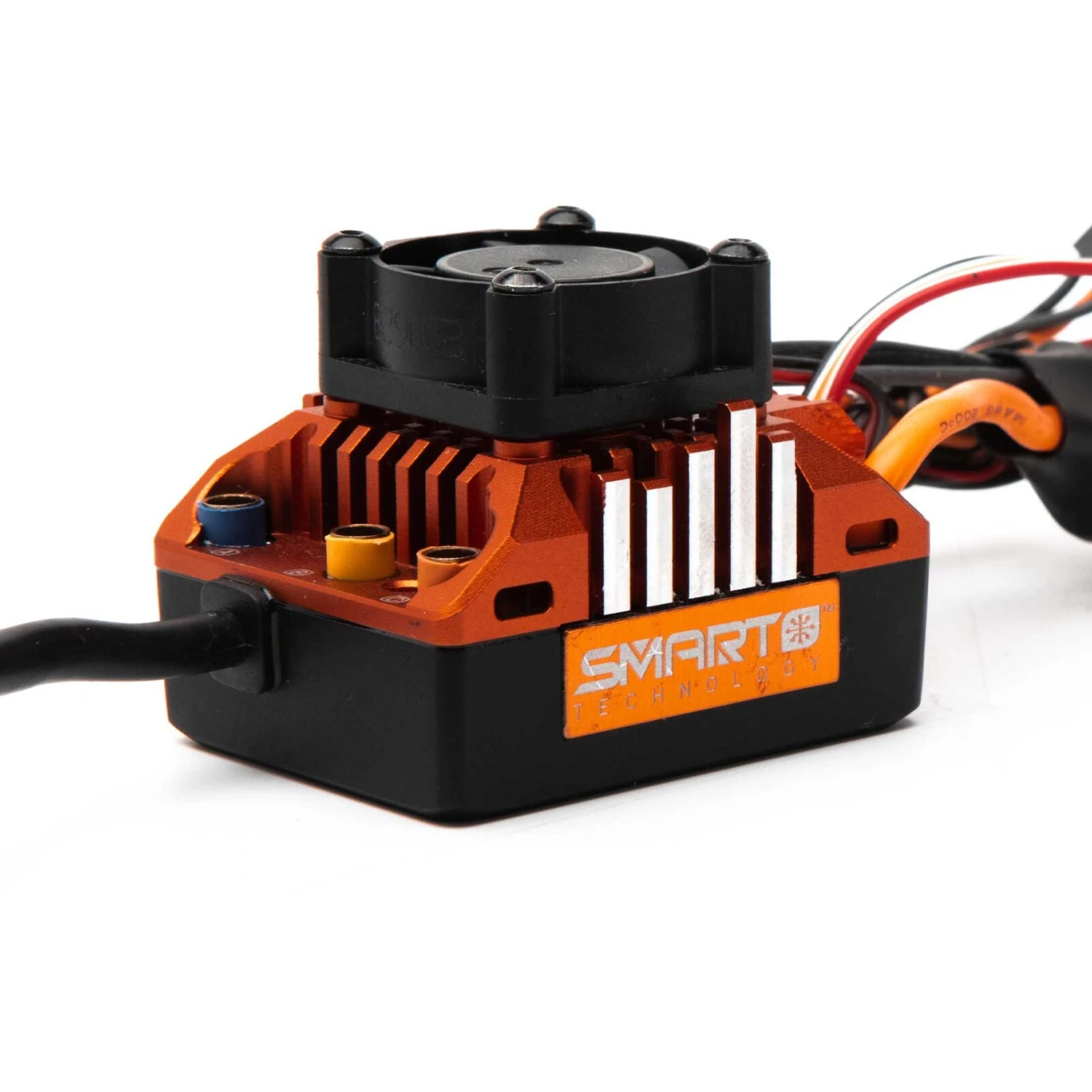

• Aluminum heat sink for high efficiency
• Includes optional cooling fan
• Adjustable high-power BEC (6V or 7.4V)
• Firmware updatable through the Smart ESC Programming Box

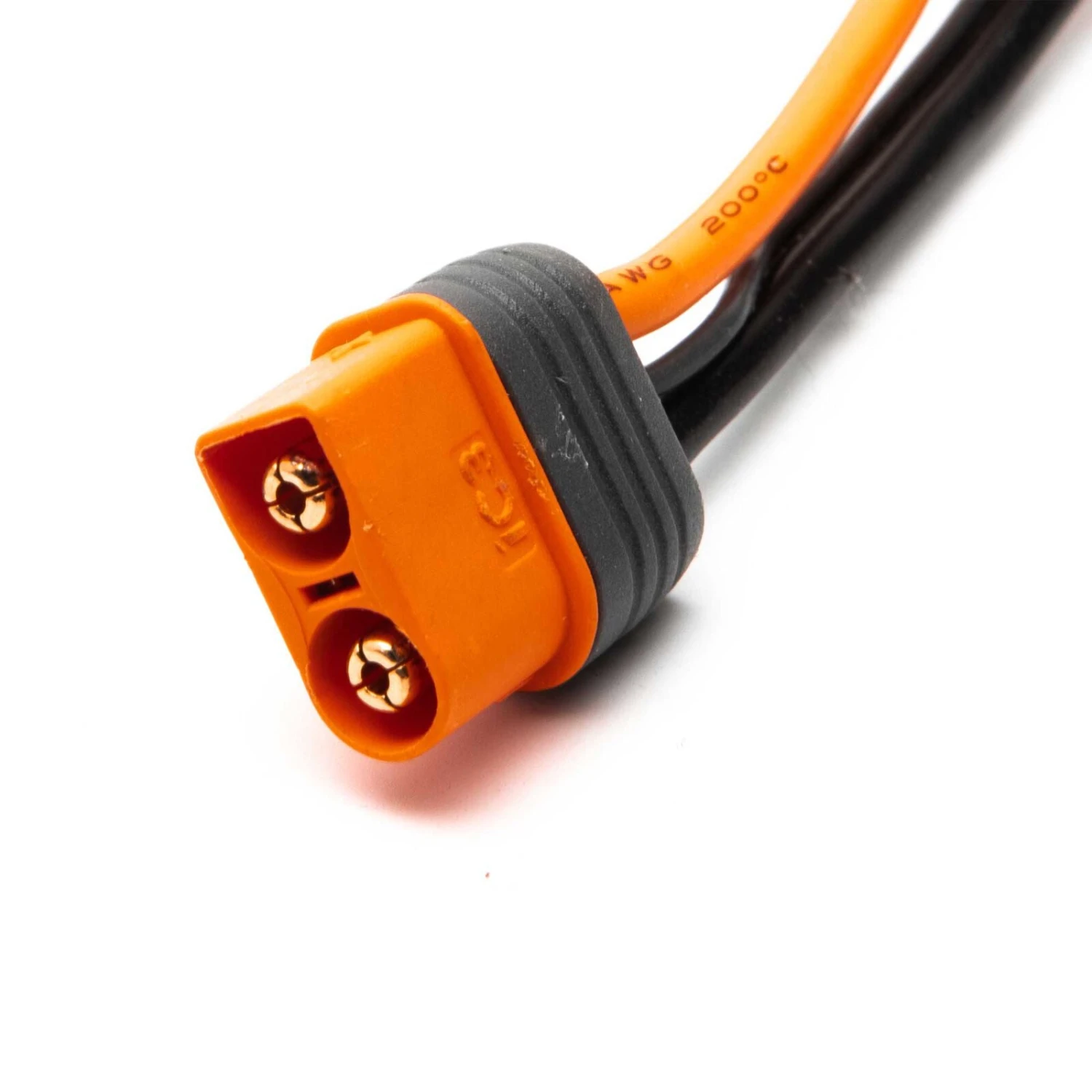

• High heat-resistant IC™ connectors, backwards compatible with EC™ connectors
• Limited 1-year warranty

Multiple Options For Easy Programming:

• Smart ESC Programming Box (V2 Programming Box Required)
• SmartLink USB Updating and Programmer application
• Programming from Transmitter via Text Gen Telemetry

Multi-point Protection:

• Over-current protection
• Automatic LiPo low-voltage cutoff
• Thermal protection
• Failsafe protection

In The Box:
(1) Spektrum Firma 120A Sensored Brushless Crawler ESC
(1) Product Manual
(1) Sticker Sheet and Mounting Tape
(1) Optional ESC Fan

Needed to Complete:
(1) Spektrum Firma Sensored Brushless Crawler Motor
(1) 2S or 4S Lipo Battery with EC3 or IC3 Connector
(1) Spektrum Transmitter
(1) Spektrum Surface Receiver
